IR Wind Comparison


June-July 2003

Go to IR-WV Comparison


A qualitative comparison was done on infrared winds from two different satellites to find if coincident IR winds from each existed. If so, the vectors from the satellites were input to the matlab script, IRcomp.m, where each IR wind from the first satallite was compared with the IR winds from the second satellite.

IR winds from Sat 2 were found for each IR wind from Sat 1 within time, distance, and height [pressure] specified thresholds. RMS differences and normalized RMS differences in wind speed were computed for coincident winds that fell within these three thresholds. The mean distance, pressure, speed, direction, and time were also computed using this dataset of points within the thresholds.

Histograms are plotted of the wind speed differences with the frequency the value occurred and scatter plots are plotted of speed differences versus distance and pressure thresholds and direction differences. Distances, pressures and speeds are computed by subtracting Sat 2 winds from Sat 1 winds.


NOTE: Data is taken with a time threshold of 1 hr, distance threshold of 50 km and pressure threshold of 25 mb unless otherwise specified.

Day 189 Arctic

GOES data from Day 195


TERRA compared with AQUA, NOAA-15, NOAA-16, and NOAA-17

Satellite
# of points within
thresholds
speed rms (m/s)
spd nrms
mean dist diff
mean pres diff
mean spd diff
mean dir diff
mean time diff
AQUA
3374
3.9
0.41
31.0
0.9
-0.1
1.3
0.42
NOAA-15
2090
3.7
0.30
30.3
-0.2
0.1
0.2
0.21
NOAA-16
588
3.6
0.30
30.1
-3.1
0.2
-2.0
0.24
NOAA-17
time thres 0.5
1623
545
3.8
3.3
0.26
0.33
30.6
29.9
-1.0
-0.5
-0.1
-1.0
-0.2
-0.3
0.44
0.24




Other Satellites Compared

Sat1/Sat2
# of points within
thresholds
speed rms (m/s)
spd nrms
mean dist diff
mean pres diff
mean spd diff
mean dir diff
mean time diff
AQUA/
NOAA-16
2855
3.7
0.27
30.7
-1.7
-0.0
0.9
0.54
NOAA-15/
NOAA-17
250
3.0
0.20
28.4
0.7
-0.3
-1.0
0.27
GOES E/
GOES W
479
2.2
0.18
29.9
-0.0
-0.1
0.4
0.25




Histograms and Scatter Plots

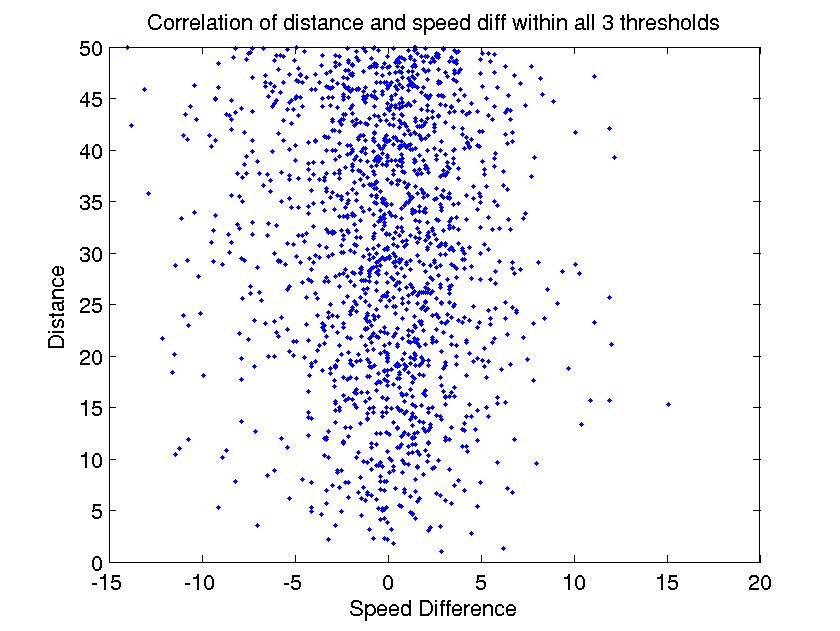

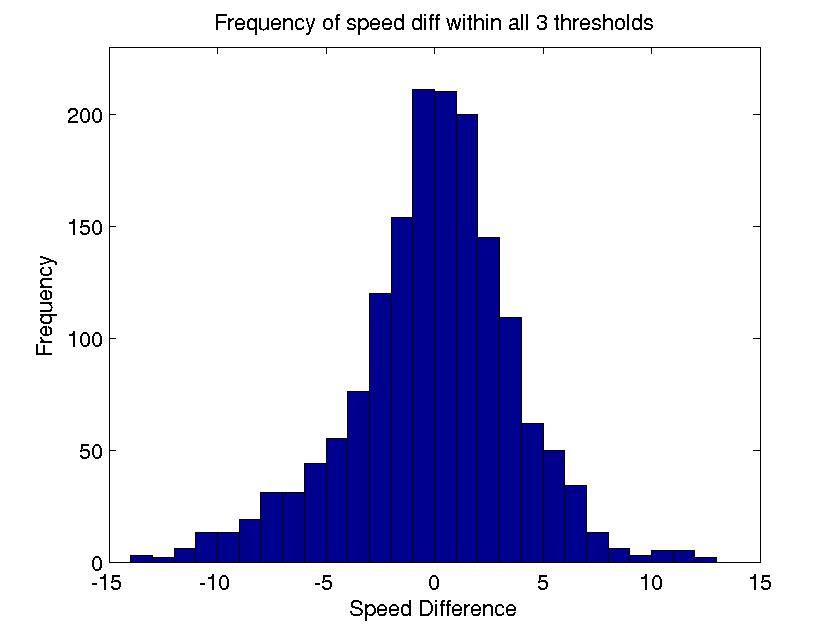

TERRA vs NOAA-17

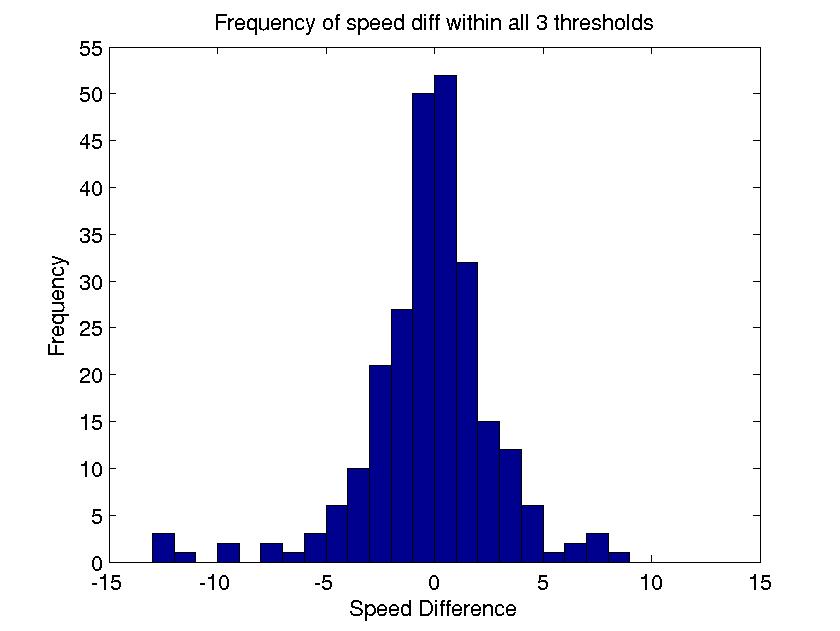

Speed Difference

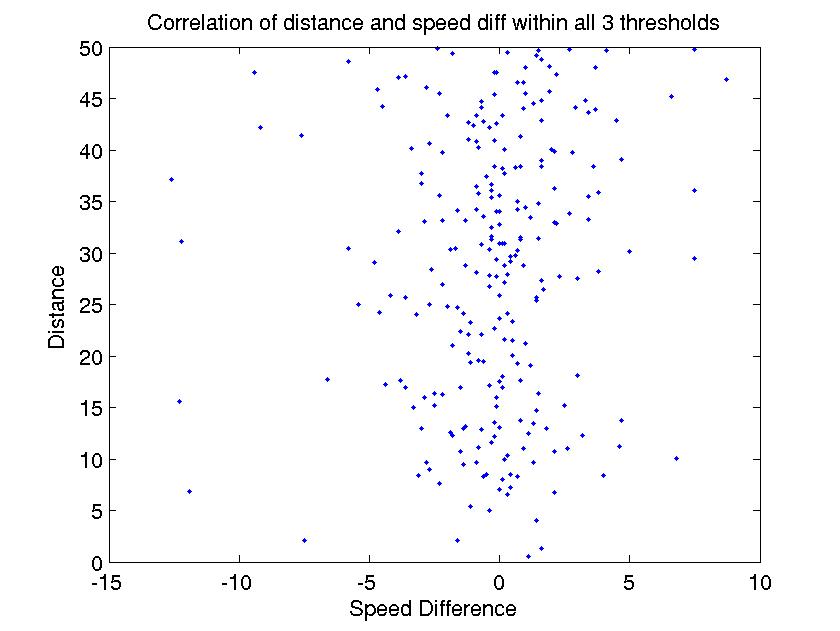

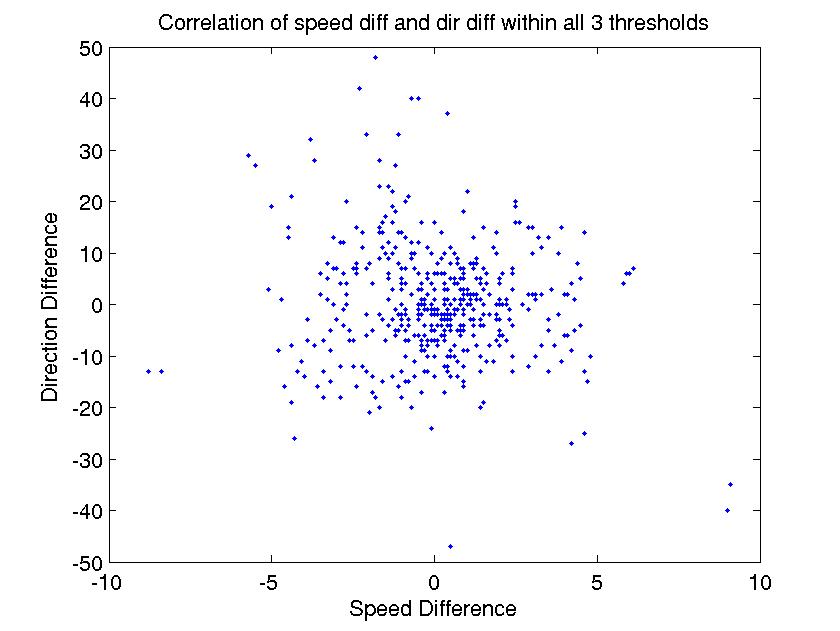

Spd Diff vs Distance

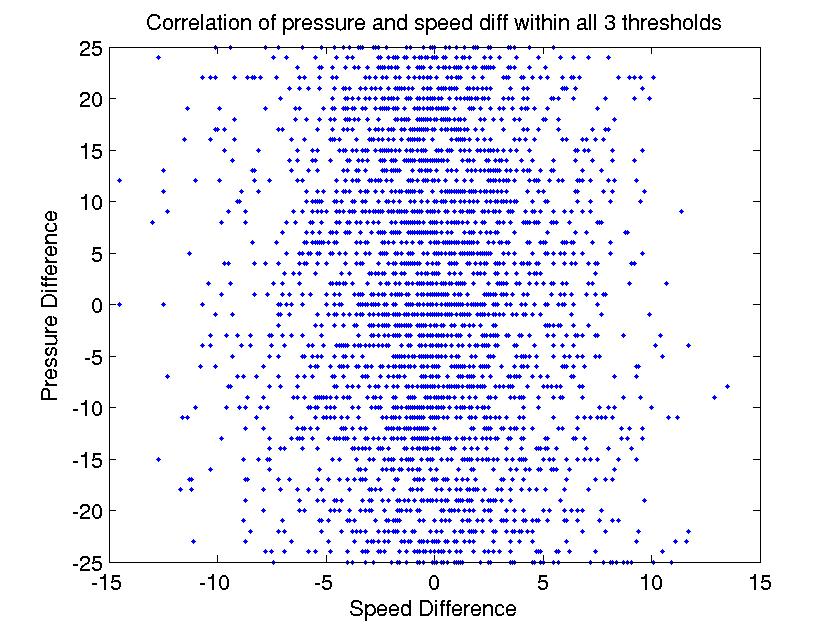

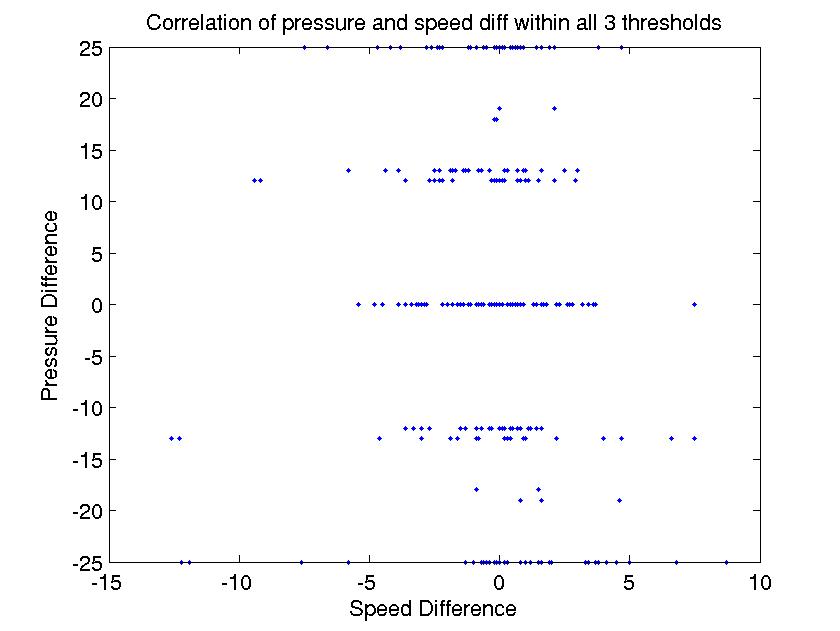

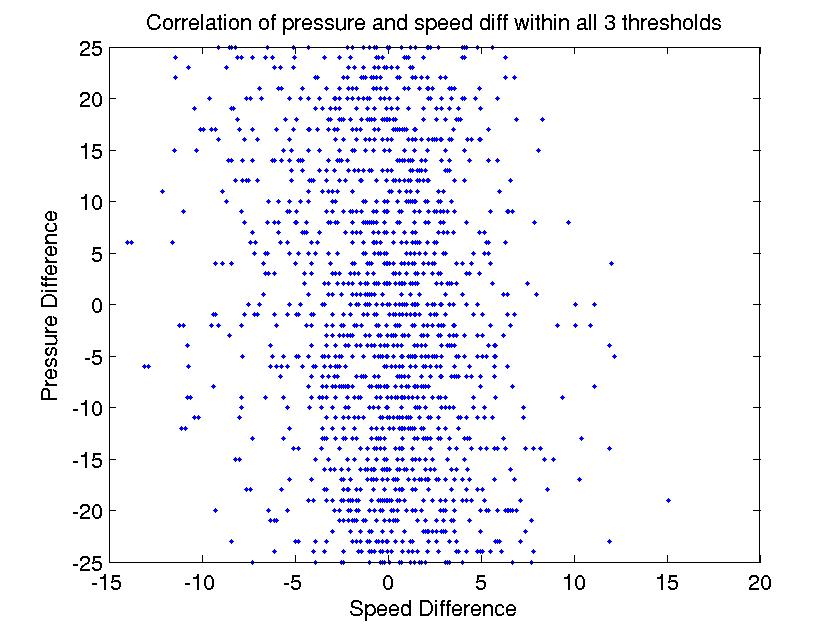

Speed Diff vs Press Diff

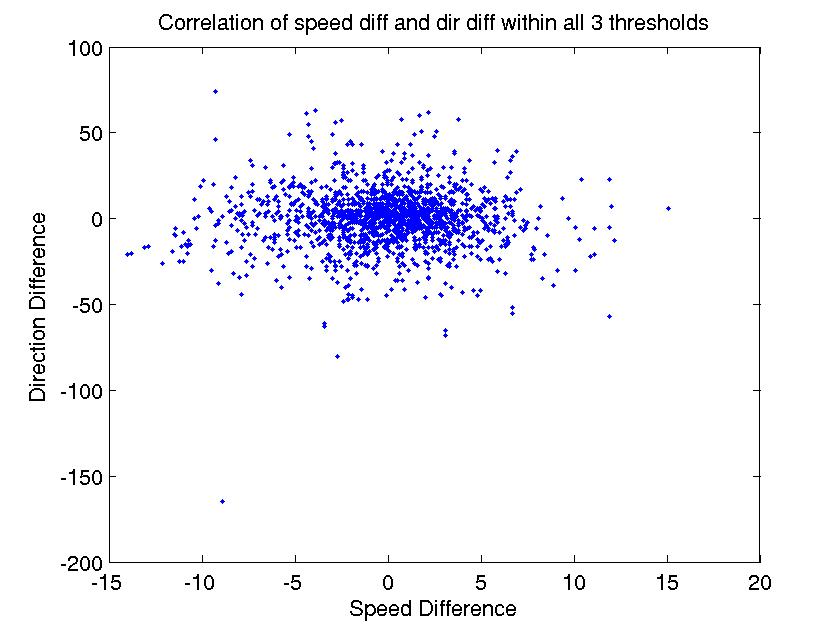

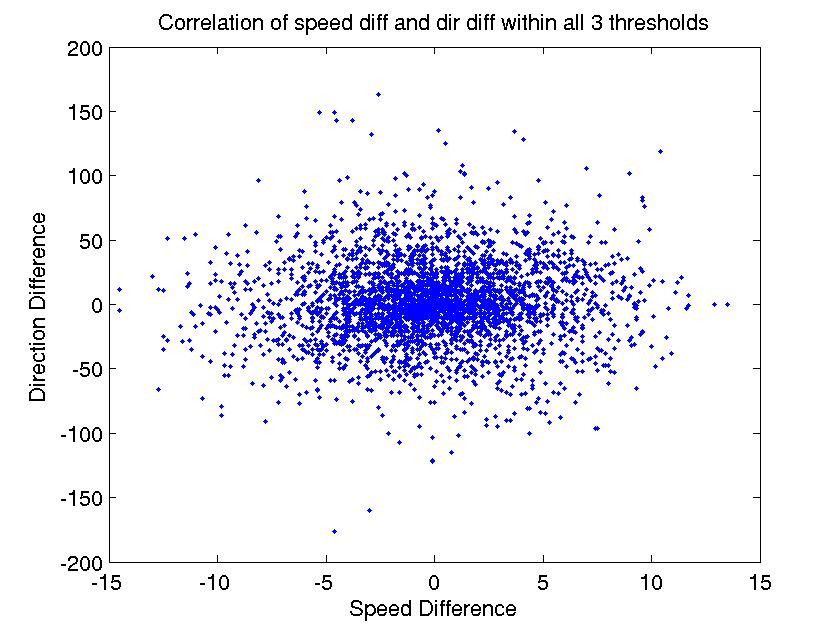

Spd Diff vs Direction Diff

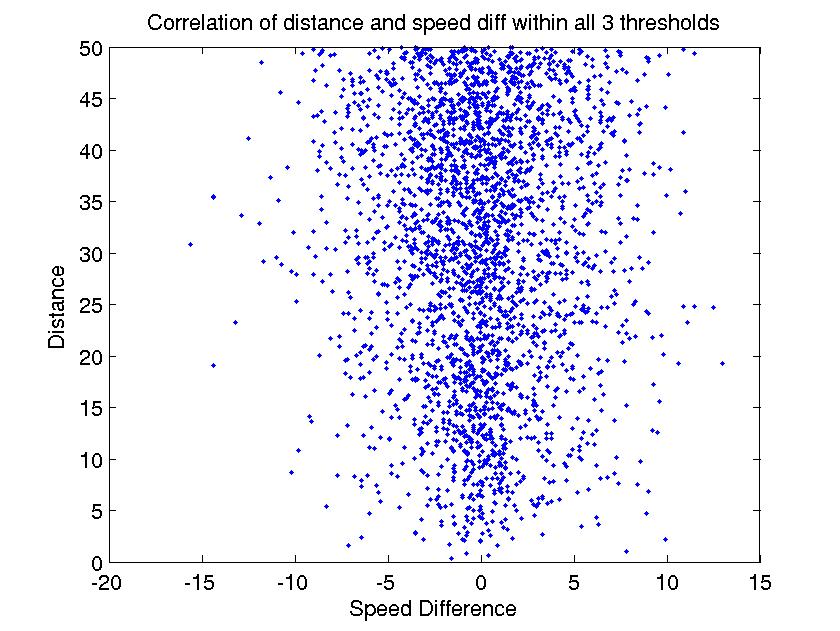

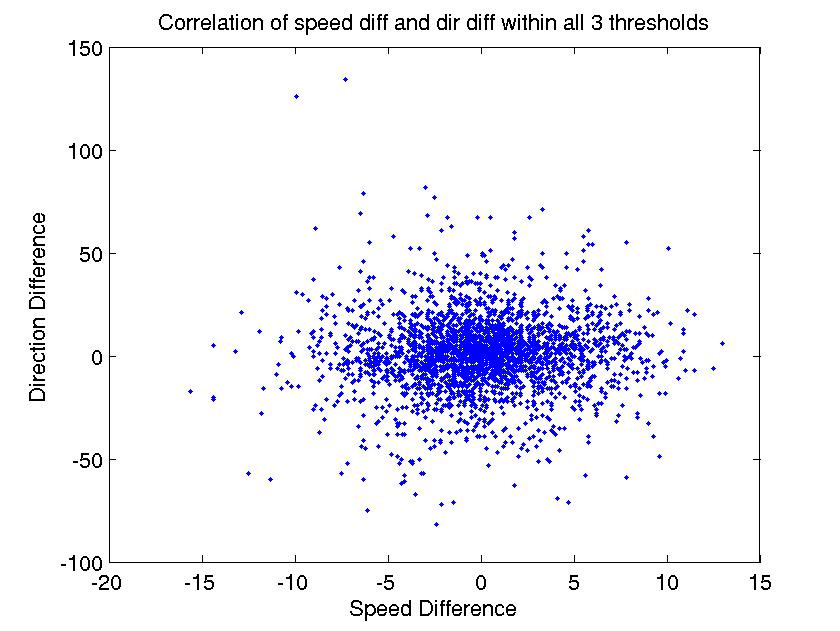

AQUA vs NOAA-16

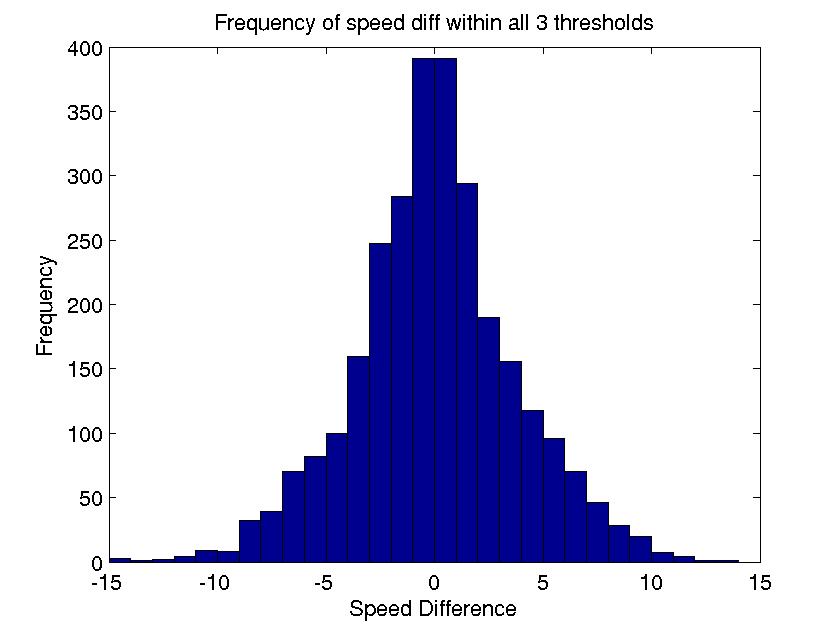

Speed Difference
Spd Diff vs Distance

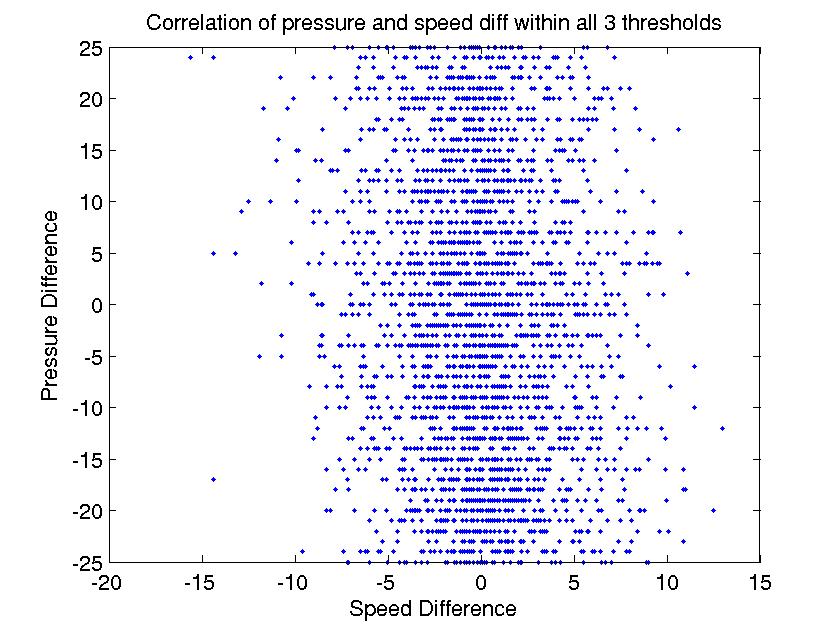

Speed Diff vs Press Diff
Spd Diff vs Direction Diff

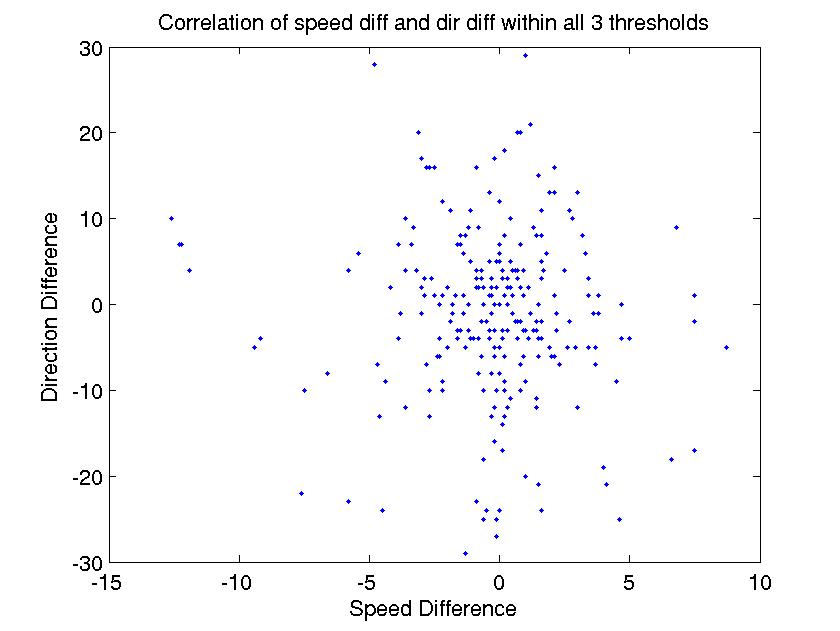

NOAA-15 vs NOAA-17
Speed Difference
Spd Diff vs Distance
Speed Diff vs Press Diff
Spd Diff vs Direction Diff

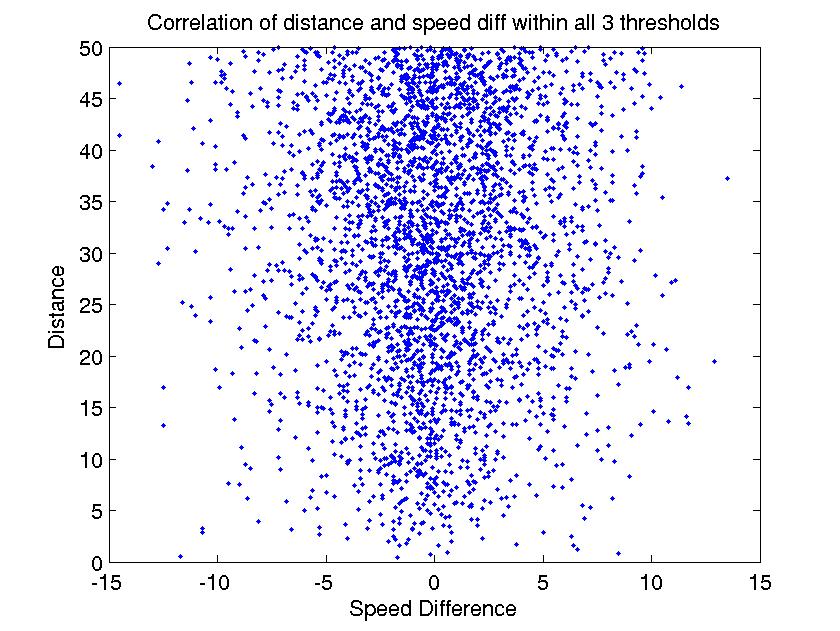

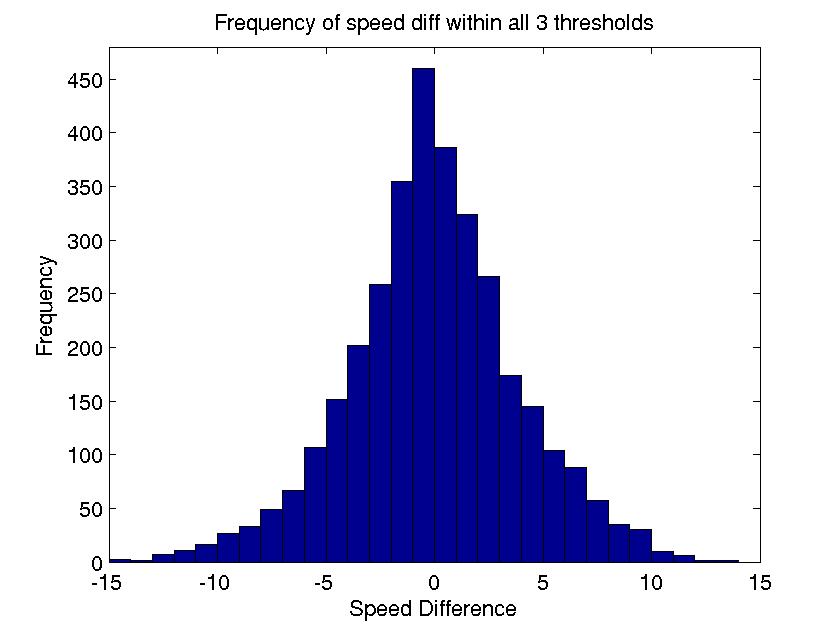

TERRA vs AQUA
Speed Difference
Spd Diff vs Distance
Speed Diff vs Press Diff
Spd Diff vs Direction Diff

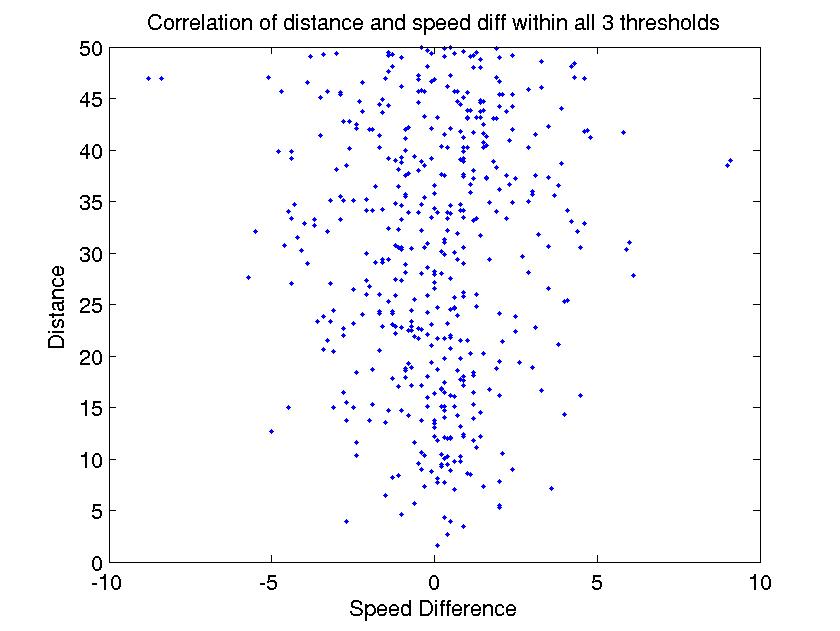

GOES E vs GOES W

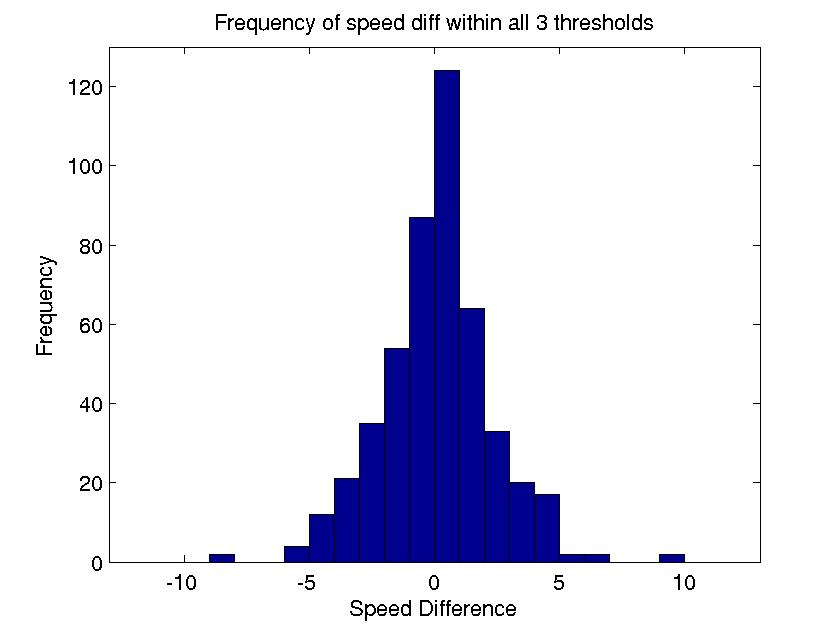

Speed Difference
Spd Diff vs Distance

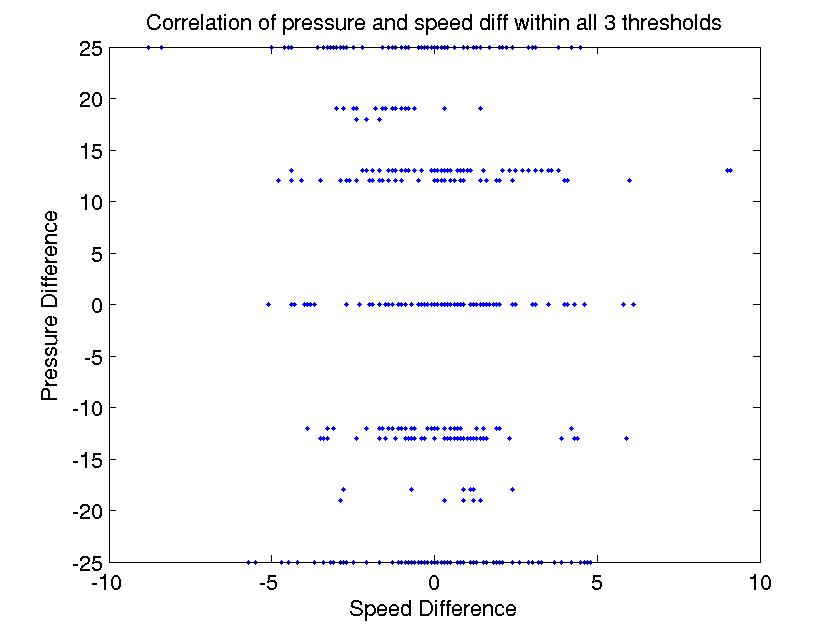

Speed Diff vs Press Diff
Spd Diff vs Direction Diff
